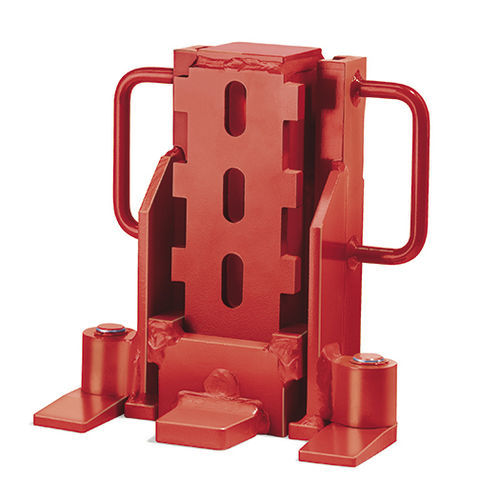

Toe jack YAP series
hydraulic10 tons15 tons

toe jack
toe jack
Add to favorites
Compare this product


Characteristics

Type
toe
Technology
hydraulic
Maximum load
10 tons, 15 tons, 50 tons, 23 tons, 4.5 tons
Applications
machine
Other characteristics
steel, for heavy loads
Lifting height

133 mm, 155 mm
(5.2 in, 6.1 in)

Pressure

700 bar
(10,152.64 psi)

Weight

13.5 kg, 23 kg, 40 kg, 60 kg, 165 kg
(29.76 lb, 50.71 lb, 88.18 lb, 132.28 lb, 363.76 lb)

Description

Hydraulic machine jacks are designed for the safe lifting and positioning of machines and similar heavy equipment. Features These jacks are operated with external pumps, e.g. hand or motor pumps but also with synchronous power packs. The compact construction allows operation even in extremely confined areas. 3 hook-in positions of the lifting claw provide high flexibility (model YAP-5130 4 hook-in positions). The load can be lifted with either the lifting claw or with the head of the jack. Welded, distortion-proof steel construction. High quality, durable hydraulic components. The flat lifting claw allows low jacking height. Safe stability due to swivel-mounted support feet. The connection between jack and pump is made by a hydraulic hose. The jacks are delivered ready-to-use inclusive of carrying handles and coupling half.
