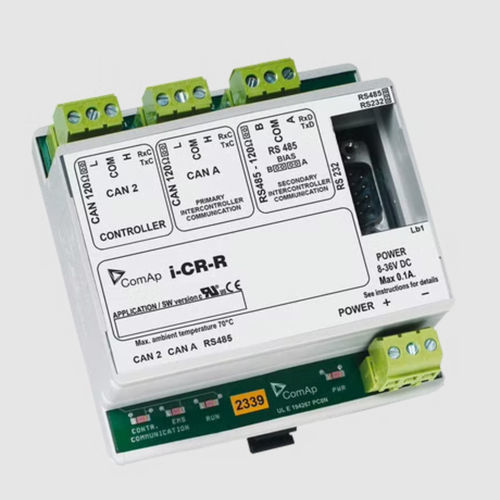

Redundancy module I-CR-R

CAN redundancy module for inter-controller CAN, helping to increase controller communication reliability on sites with large footprint. Suitable for complex applications with possible inter-controller bus interruption Ideal for large distances between controllers Overview Improved controller communication reliability through redundancy for complex applications where the inter-controller bus is at risk of interruption Support for sites with large footprint where there is a large physical distance between the ComAp controllers Duplicates the inter-controller CAN bus communication over a parallel RS485 interface In case the CAN or RS485 lines are interrupted, the others continue to maintain the overall system in operation Support for up to 20 controllers on the inter-controller CAN bus Doubling the useful range of inter-controller CAN bus Support for all ComAp controllers in our portfolio The module is compatible with InteliGen 1000 and InteliMains 1010 controllers only if the CAN inter-controller communication mode is set to 32C/8C i.e., not in CAN FD mode UL certified
