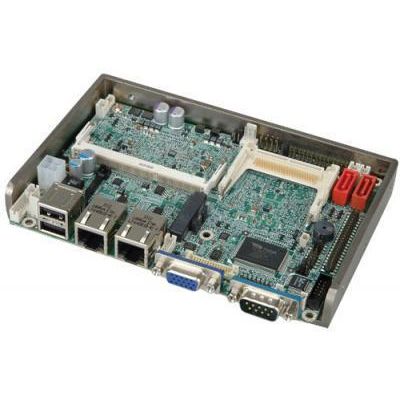

3.5" single-board computer / Intel® Atom D525
TCS-001-01848

{{requestButtons}}

Characteristics

  • Form factor:

    3.5"

  • Processor:

    Intel® Atom D525

Description

Family: Single Board Computer
Product Number: TCS-001-01848
Brand: Comark

Title: 3.5″ Fanless Industrial SBC with Intel Atom D525/D425/N455 with Heat Spreader
Description: 3.5″ Fanless Industrial SBC with Intel Atom D525/D425/N455 CPU, DDR3, VGA/LVDS, Dual GbE, USB2.0, SATA II, Audio
Features:

3.5″ SBC with Intel® Atom D525/D425/N455 CPU
Open Frame Heat Spreader
DDR3 800MHz SDRAM support up to 2GB max.
Supports VGA and 18-bit single-channel LVDS with dual display
Supports six COM, eight USB, two SATA II, and CF Type II socket
Mini-PCIe Expansion Slot
Extended Operating Temperature: -20C ~ +60C free air, -20C ~ +70C with forced air for D525 CPU
Extended Operating Temperature: -20C ~ +65C free air, -20C ~ +70C with forced air for D425 CPU
Extended Operating Temperature: -20C ~ +70C free air, -20C ~ +75C with forced air for N455 CPU
