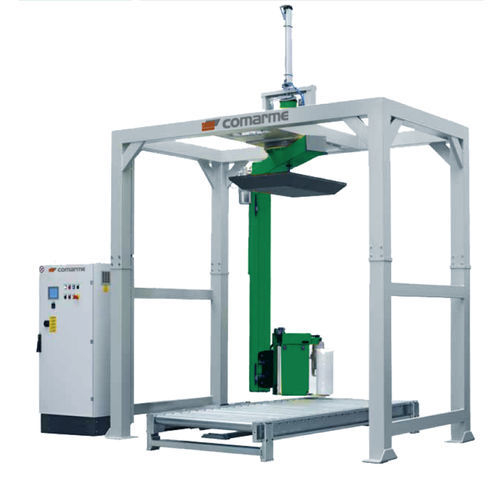

Rotary arm stretch wrapper RONDA REVOLUTION
automaticwith electromagnetic brakingpallet

rotary arm stretch wrapper
rotary arm stretch wrapper
rotary arm stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
rotary arm
Operating mode
automatic
Braking type
with electromagnetic braking
Product applications
pallet
Other characteristics
stretch film, with conveyor
Height

3,650 mm
(144 in)

Width

3,150 mm
(124 in)

Length

3,575 mm
(141 in)

Maximum wrapping height

2,200 mm
(86.61 in)

Maximum pallet length

Max.: 1,300 mm
(51.18 in)

Min.: 600 mm
(23.62 in)

Maximum pallet width

Max.: 1,100 mm
(43.31 in)

Min.: 600 mm
(23.62 in)

Rotational speed

25 rpm, 30 rpm, 34 rpm
(157 rad.min-1, 188 rad.min-1, 214 rad.min-1)

Voltage

400 V

Power

Max.: 6 kW
(8.16 hp)

Min.: 3.5 kW
(4.76 hp)

Description

Compact, high performance rotating arm machine for wrapping pallets with stretch film. Reliable, robust construction. Thanks to my compact size I can be shipped economically in one piece. Traditional systems take up more space. Easy film loading, accurate and economic. Traditional systems are open, slip and use more film. Tuck in unit for threading the film tail inside the wrap. Unique and patented system. Suitable also for net film. Film cut, clamp and weld unit self adjusting for any size of pallet. Roping System: Reducing the film width to form a rope to ensure more effective load stabilisation Heavy duty, large diameter, bearing support. Easy maintenance Control panel equipped as standard with touch-screen operator display.
