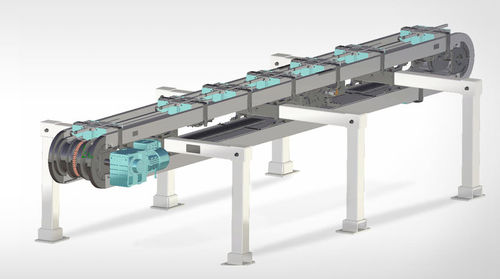

Chain conveyor APC

horizontalelectric drivepallet

The Accumulating Pallet Conveyor is a configurable machine based on: Simplicity that makes the conveyor composition faster (for standard application) Commonality for carry over. They do not change according to different conveyor lengths. Others, still maintaining the same functions and characteristics, change dimensions. Moreover, thanks to complete product flexibility, the APC can be: Floor mounted/Overhead Front/Lateral loading Wide pallet range dimensions Wide use of standard units to simplify engineering processes High Positioning accuracy (0.5 mm) Product Features Conveyor Length: 2 – 12 m (Standard) ; 12 – 100 m (Custom) Conveyor Weight: 100 Kg/m Transport Speed (max.): 10 m/min Payload (max.): 100 Kg/m (specific fixture + part) Pallet width (max.): 1200 mm Motor mounting: Clamped directly onto the driving shaft with anti-rotation bracket Maximum installable power: 0,55 kW Flying roller chain: 1 triple chain with 12,7 mm pitch Pallet position control: by inductive limit switches Pallet stopping accuracy: ± 0,5 mm Height of transport level: 800 - 1050 mm (floor mounted) Conveyor structure: Aluminum Load per stopper (max.): 10 pallets No air needed: ecosustainable Chain oil free Global product experts guarantee engineering/process support. World-wide distribution with the proper support.
