Pad printing machine with hermetic ink cup INKPRINT XE30 4C series
electropneumaticautomatic

pad printing machine with hermetic ink cup
pad printing machine with hermetic ink cup
Add to favorites
Compare this product


Characteristics

Type
with hermetic ink cup
Other characteristics
electropneumatic, automatic
Printing force

25,000 N

Description

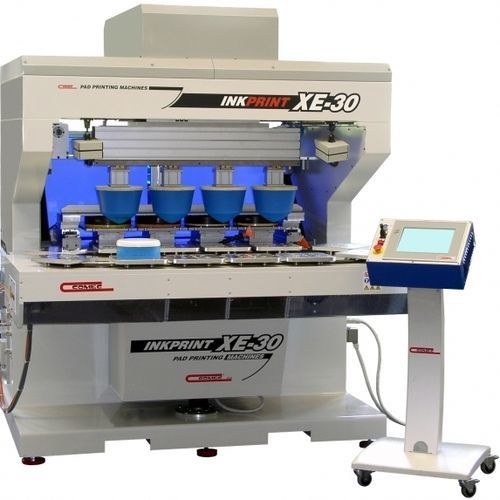

Inkprint XE30 is an electro-pneumatic machine that has electronic control of axes. The device is designed to satisfy any printing need on big items using up to 8 colors. It comes with 8 ink cups that have 138mm diameter ceramic rings. The cups are hermetically sealed and are suitable for an printing area of dimensions 115x300mm. The 6 color version comes with 6 hermetically sealed ink cups with 160mm diam. ceramic rings for a printing area of 145x300 (slide stroke). Its 4 color version has 4 hermetically sealed ink cups with 250mm diam. ceramic rings for a printing diameter of 230mm. Inkprint XE30 uses a PC with touch screen interface for controlling axes movements. This allows for easy and fast programming. Optionally, the machine can be set to allow independent control of individual pad down stroke. Brushless motors are used for controlling x-y-z axis.
