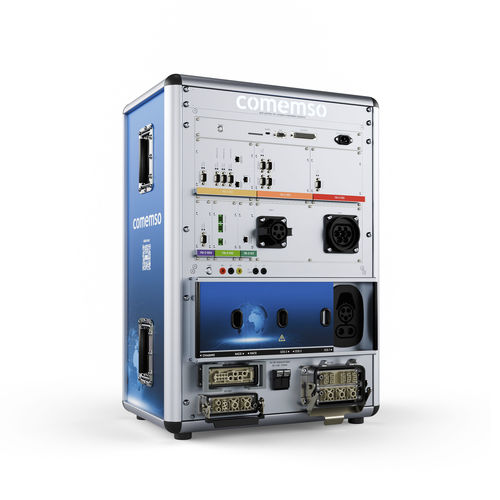

Simulation test equipment EVCA MultiMobile@ FLEX

automatedcomputer-controlledfor electronic components

All charging standards in one compact and portable system – ready for use, without having to be repositioned. The comemso EVCA Multi Mobile is an absolute world novelty in the field of EV charging system analysis. It combines the four most common charging standards AC/DC-CCS Type 1 + Type 2, CHAdeMO and GB/T China in one system. Directly ready for use without prior plugging and replacing of inlets or similar! All for one and one for all. Due to the user-friendly design of the comemso EVCA Multi Mobile, there can be no operating er- rors. With the built-in slide flap, you can only activate the charge standard that is visible. Once the desired charging standard has been set, the comemso EVCA Multi Mobile measures and checks both the communication and the load circuit for standard conformity over the entire charging period and records any deviations. This enables the causes of charge interruptions to be identified and the causes of events to be recognised and visualised. All this is done in accordance with the latest standards. For DC-CCS Type 1 + Type 2: IEC 61851-1, DIN 70121, ISO 15118 and SAE J1772; ISO/IEC 61851-23 measurement and ISO/IEC 61851-24 without faults on DC load circuit. For CHAdeMO: 0.9.1, 1.0, 1.0.1, 1.1, 1.2 and 2.0. For GB/T DC (China): GB/T 27930- 2011; GB/T 27930-2015 and GB/T 18487.1-2015. TLS decryption, extended Man-in-the-Middle. If you want to use the comemso EVCA Multi Mobile as a Man-in-the-Middle, the system can not only measure without influence (no decryption), it also performs Man-in-the-Middle for DIN 70121 and ISO 15118 EXI decoding. Now also new: Man-in-the-Middle for ISO 15118 PnC/TLS communication.
