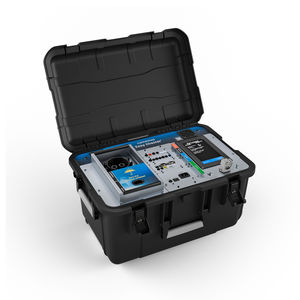

Electric test equipment Easy Chester@ EOL HPC

performanceautomaticfor electric vehicle charging stations

Your demands are even higher? If your focus is on End-Of-Line (EOL) testing with high power charging, the Mini-Charger-Tester EOL HPC can still be installed in a single, rollable rack for loads of up to 120 kW. If you need even a higher DC battery emulation for testing the maximum performance of your EVSE you can extend your system using battery emulators to reach DC-loads of up to 500kW 1000V/500A. Please talk with our sales team to select the fitting battery emulation / bi-directional power supply. Like the tabletop version, this rack version is also designed for continuous operation of up to 8 hours per day under laboratory conditions. Designed to be operated with an End-of-Line test bench Supports high power charging, up to 120 kW in one 38 HU Rack, emulated EV load circuit adjustable in the range of 250V – 350V battery voltage and 5A – 250A charging current By using separate battery emulators you can even reach DC-loads of up to 500kW (1000V/500A). But no 500kW mains power is necessary, since the power is regeneratively shifted in a circle – see the block diagram below for an explanation. Designed for continuous operation (up to 8 hours) under laboratory conditions Adjustable charging time from a few seconds to infinite Automated charging tests, remotely controllable via SCPI commands (UART/RS232 interface)
