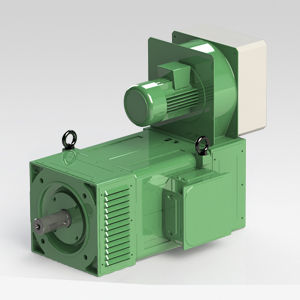

Universal motor RTL-PVR 112 seriesdirect currentIP54IP23
Add to favorites
Compare this product
Characteristics
- Type
- universal, direct current
- Protection class
- IP54, IP23
- Power
Max.: 31.3 kW
(42.56 hp)Min.: 8.1 kW
(11.01 hp)- Torque
69 Nm, 82 Nm, 97 Nm
(50.891788 ft.lb, 60.480096 ft.lb, 71.543528 ft.lb)- Rotational speed
Max.: 3,300 rpm
(20,734.5115 rad.min-1)Min.: 930 rpm
(5,843.3623 rad.min-1)
Description
IP PROTECTION IP23 (IP54 on request with power derating)
THERMAL PROTECTION KLIXON (PT100, PTC on request)
SHAFT EXTENSION FITTED KEY (PLAIN SHAFT on request)
BALANCING FULL KEY (HALF KEY on request)
VIBRATION GRADE A
INSULATION CLASS F
COOLING METHOD IC06 (IC01, IC0641, IC416, IC410, IC411, IC0666 on request with power derating)
AMBIENT CONDITIONS 0 ÷ 40°C (32 ÷ 104°F) 1000m ASL
TRANSDUCER TACHOMETER GENERATOR (on request)
MOUNTING FORM B3, B5, B35 by request
PAINTING NITRO, POLYURETHANIC, C5M, on request
