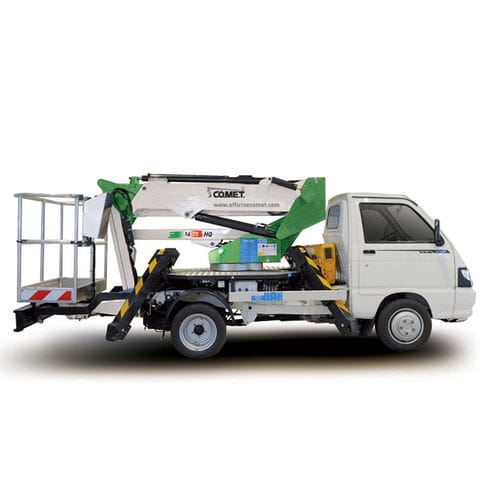

Truck-mounted telescopic boom lift 16 | 2 | 6 (7.5) HQ JIB
outdoor

truck-mounted telescopic boom lift
truck-mounted telescopic boom lift
truck-mounted telescopic boom lift
truck-mounted telescopic boom lift
Add to favorites
Compare this product


Characteristics

Portability
truck-mounted
Applications
outdoor
Working height

Min.: 0 m
(0'00" )

Max.: 16 m
(52'05" )

Lift capacity

Min.: 1 kg
(2.2 lb)

Max.: 200 kg
(440.9 lb)

Description

There is no need of any limiting device for lateral outreach Double pantograph to obtain an override height of 6 m Telescopic boom Articulated terminal boom “JIB” to reach even the most uncomfortable positions over roofs and balconies 360° continuous rotation of turret without any limit on the whole working area 100% hydraulic controls with proportional system in low pressure to allow gradual and accurate movements, and long-lasting life to the platform with maintenance costs reduced at minimum Rotating basket to be able to work in every position Electric power tap 230 V in basket Engine start & stop from basket Optional auxiliary engine to operate the platform without using truck engine Stop safety valves directly mounted on each hydraulic cylinder Hour-counter in the cabin Closed outriggers warning light for driving safely
