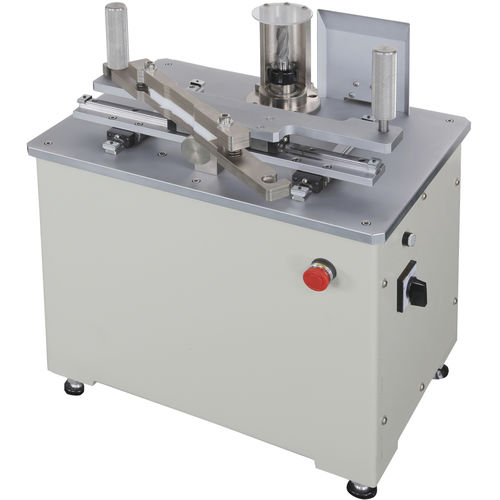

Plastic cutting device QC-603I

formingtrimmingflat

This machine is suitable for hardness flat shape of polymer material, as a fixed sample or specimen trimming purposes. It needs to base on forming of appearance to make mold and take slightly larger than finished product of material clamp on the mold. The mold will be slow put into machine and cut out redundant of shape which is sample. QC-603I with precise track and mold that can reduce vibration and danger during operation. It also can base on material of properties to set up fast and low speed to doing cut. The customer can choose different mold to replacement with multipurpose purpose. Industry Plastic Application ASTM D638　 Plastic Tensile Test Catalog Download QC-603I Hardness Specimen Cutting Device Specifications Material Hardness of polymer specimen Horse power 600W Cutting speed 99 sector speed change Speed ragne 150~3500 rpm Specimen thickness 2 ~ 15 mm Capacity for mold Length: 25-280mm Width: 20-70mm Height: 30mm Minimum cutting R angle R＝6 mm Accessories 1. With one dumbbell shape cutter, customized shape is also acceptable but cannot be wider than 100mm and longer than 250mm. 2. With transparent protection cover. 3. With vacuum function to assemble scrap keep it clean when operating. 4. Equipped with track to increase the stability, safety and fluency. Power 60 kg Dimension single phase, 110V or 220V(Designate) Weight 47 × 40 × 45 cm (W x D x H)
