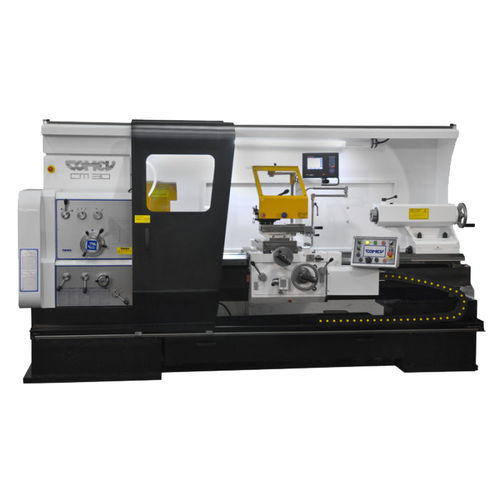

Conventional lathe CM

horizontal2-axisuniversal

A classical, high quality line. The result of the Italian tradition of machine tools, the CM lathe model is the machine that must always be found in any workshop. Regardless of whether it is used often or sporadically, it is always ready to give its best when used in maintenance, tooling and special machining. With attention to detail, but with no frills, it is a high quality lathe where the components are made to last. Rigid and sturdy, it is suitable for medium-heavy machining while still being a remarkably easy to handle machine. Head Monobloc casting in various shaft heights, it contains a 16-speed gearbox with geometric progression. Equipped with a mechanical dual clutch or electrical dual clutch, ISO 5 quality gearing, casehardened, tempered and ground to obtain gear precision and low noise level. CAM LOCK 8” spindle bore 110 casehardened, tempered, finely ground and assembled on super-precision tapered roller bearings, assuring such machining roughness levels to eliminate the need for certain grinding processes on the pieces. Thermally stable and lubricated with oil from the special gear pump. Norton Box The enclosed monobloc casting in an oil bath contains gears and shafts in C40, tempered, ground and mounted on bearings. It can obtain 72 feed rates and 52 threading pitches without external gear changes in the various Metric, Whithworth, Diametral Pitch, English systems. Carriages The suitably sized carriage is rigid and stable in the various machining modes whilst still being agile and sensitive during operations with the mechanical handwheels. Finely machined lead screws in 38 NcD4 steel with high resistance bronze nuts.
