Conventional lathe Gold horizontalgoldsmith'sprecision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Applications
- goldsmith's
- Performance
- precision
- Other characteristics
- compact
- Associated function
- threading
- Diameter
260 mm
(10.24 in)- Spindle speed
36 rpm, 1,600 rpm
(226.195 rad.min-1, 10,053.096 rad.min-1)- Nominal power
4 ch, 5.5 ch
(4 hp, 5.5 hp)- Weight
1,300 kg, 1,400 kg
(2,866 lb, 3,086 lb)
Description

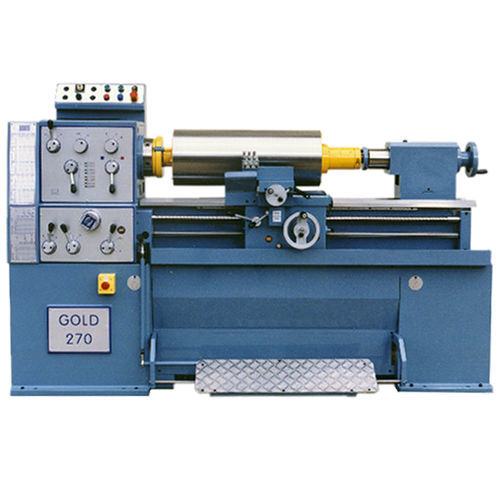

The Gold Lathe is a machine designed for turning chains. It is a very compact machine with precision and mechanic particulars of a a traditional lathe. The change speed gear and the Norton gear are maintained to obtain the threading in the table.
A pedal keyboard allows a forward-backward mandrel rotation at the speed selected to roll up chains.
Standard accessories:
Self-centering faceplate – Taper spindle reducing bush – Instruction manual – Levers and hand wheels Matt chromium plated.
