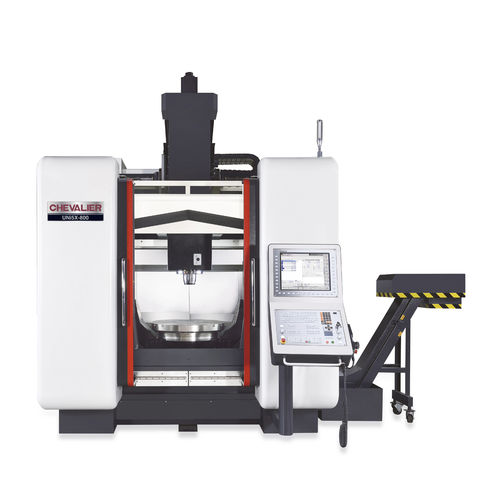

5-axis machining center Chevalier UNi5X

verticalgantryfor aeronautics

Features The UNi5X-800 design is based on an advanced gantry construction giving the most rigid structure. Dual drive system with four-linear-guideway design on Y axis performs high-rigidity and high-precision machining. Standard 32-tool magazine can couple with the 2nd tool magazine (opt.)–32T+32T large tool storage capacity. Driven by three direct drive torque motors, A axis and C axis on power transmitting efficiency and acceleration / deceleration are more excellent than the worm and worm gear transmissions. The German-made built-in spindle combined with 5-axis machining technology ensures a high quality machining and 5-axis continuous operation. UNi5X-800 is extensively applied to the industries of aerospace, automotive, die & mold, medical, energy, shipbuilding, and furthermore, can realize the application needs of the customized products. Specification Work Table Size: Ø800mm (31.5") Workpiece Dimensions (W x H): Ø800 x H 600mm(Ø31.5" x H 23.6") Max. Table Load: 1,300kg (2,866 lbs) X/Y/Z Axis Travel: 800 x 900 x 650mm(31.5"x 35.4"x 25.6") Spindle Nose to Table Surface: 100~750mm (4"~29.5") Rapid feed rate (X/Y/Z): 48m/min (1,889 ipm) Cutting feed rate: 15 m/min (590 ipm) A/C Axis rotation range: ± 120˚ / 360˚ Spindle type: Built-in Spindle speed: 18,000rpm Tool capacity: 32T+32T (Opt.)
