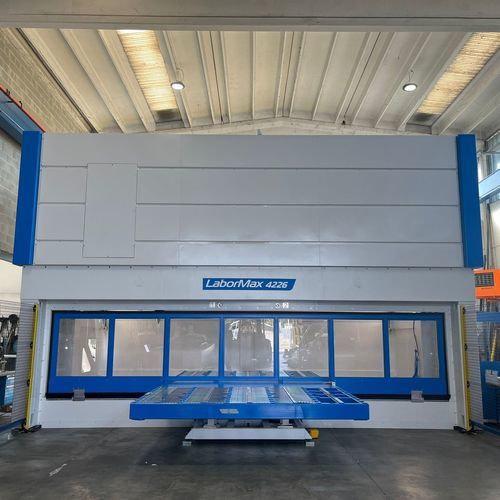

5-axis CNC milling machine LaborMaxverticalfor woodfor composites
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for wood, for composites, for aluminum
- Structure
- gantry, rotating table, with fixed table
- Other characteristics
- high-speed, rigid, high-speed, with integrated pallet changer, wide
- X travel
3,200 mm, 4,200 mm, 5,200 mm, 6,200 mm
(125.98 in, 165.35 in, 204.72 in, 244.09 in)- Y travel
Min.: 2,000 mm
(78.74 in)Max.: 2,600 mm
(102.36 in)- Z travel
Min.: 900 mm
(35.43 in)Max.: 1,200 mm
(47.24 in)- Rotational speed
Min.: 18,000 rpm
(113,097 rad.min-1)Max.: 24,000 rpm
(150,796 rad.min-1)- Power
Min.: 10 kW
(13.6 hp)Max.: 18 kW
(24.47 hp)- Work feed X-axis
80 m/min
- Work feed Y-axis
80 m/min
- Work feed Z-axis
40 m/min
Description
LaborMax is an extremely versatile working center capable to satisfy the milling requirements on a wide variety of materials, with characteristics which made it the best solution for composite materials working operations.
Available in several standard dimensions and versions, with fixed, rotary (pallet changer) or extractable tables, with different power working head, with linear or rotary tool magazines.
LaborMax is distinguishing for the great versatility, the wide possibility to furthermore complete the machine with auxiliary devices, the stiffness of the structure, for whole technical characteristics which position it at the top of its category.
