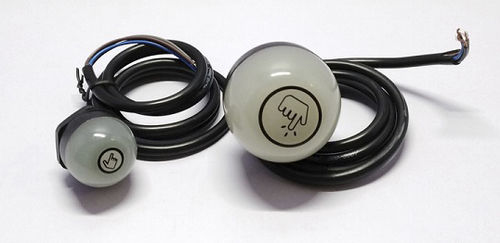

Non-threaded knob CC30T

mushroompolycarbonateindicator

Two colors indicator, 30mm diameter, save space Easily actuated with bare hands or work gloves IO logic build in?clear indication of different status IEC IP69K suitable for harsh environments Power supply : DC 24V (±10%) R Y G B Each color : MAX 50mA @24V IO Model Output : Max Load : 150mA Output state saturation voltage : 2V(DC 10mA), 2.5V(DC150 mA) Non-output state leakage current: 7.2V? Input resistance 10K Protection : Over current/Over voltage protection; Reverse, connection protection Material : Bases & covers : ABS(70%) +Polycarbonate (30%) Light segment : Polycarbonate Indicator color : IO Type:Job Light -Green;Sense+ Job -Amber;Mis-pick(Sense, no job) -Red.Only two colors available in three status. Connection : 4X0.3mm2 double insulated PVC cable Connection : 0.3m cable with M12 Male QD or 1 meter cable Working environment : -40 ° C to 50 ° C (? 40 ° F to 122 ° F) Humidity : 95% at 50 ° C IP Rating : IEC IP69K
