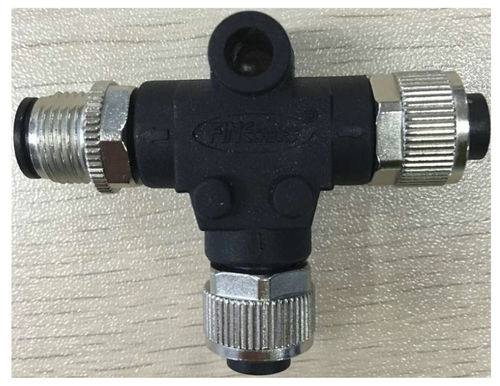

Signal splitter M12.8

Discover our new accessory T-SPLITER M12.8 For automatic series connection of safety switch Getting Auto series safety switch Easy installation / wiring / installation speed   1. Easy installation 2. Simplified wiring 3. Quick installation   General / Applications : This product allows automatic connection of AMX5-MKT-485  or ANATOM78S series safety sensors while reducing wiring to a minimum. Indeed one cable connects the electric cabinet to the sensors. The series connection of contacts, power, and consolidation of auxiliary outputs are made automatically. It is possible to connect several T-SPLITER M12.8 cascades directly or via a FMKT cord (optional). The FKT cord for connection to the control cabinet is also optional.   Main specifications :   • Maximum voltage between two wires: 30 VDC • Maximum current per wire: 2A • Connection: 2 x M12 / 8p female and 1 x M12 / 8p male Fixation: 1 M4 screw • Application temperature: -20 ° C to  80 ° C • Dimensions: 57 mm x 44 mm x 20 mm • Unit Weight: 26 gr
