Membrane compressor HV0 series
rotary vaneairmotorless

Membrane compressor - HV0 series - COMPAIR - rotary vane / air / motorless
Membrane compressor - HV0 series - COMPAIR - rotary vane / air / motorless
Membrane compressor - HV0 series - COMPAIR - rotary vane / air / motorless - image - 2
Membrane compressor - HV0 series - COMPAIR - rotary vane / air / motorless - image - 3
Add to favorites
Compare this product

Characteristics

Technology
rotary vane, membrane
Type
air
Power source
motorless
Portability
stationary
Application domain
industrial
Other characteristics
compact, small, light
Pressure

10 bar
(145.04 psi)

Flow

Max.: 0.57 m³/min
(20.13 ft³/min)

Min.: 0.12 m³/min
(4.24 ft³/min)

Power

Max.: 4 kW
(5.44 hp)

Min.: 1.1 kW
(1.5 hp)

Length

673 mm, 966 mm, 1,390 mm
(26.5 in, 38.03 in, 54.72 in)

Width

313 mm, 386 mm, 462 mm
(12.32 in, 15.2 in, 18.19 in)

Height

366 mm, 784 mm, 998 mm
(14.41 in, 30.87 in, 39.29 in)

Noise level

62 dB, 69 dB, 73 dB

Description

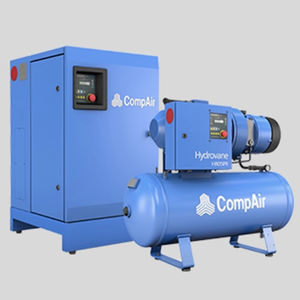

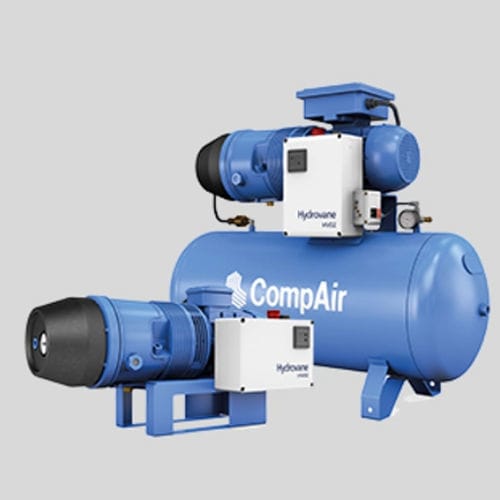

Small and compact Hydrovane HV 01 - 04 models are ideally suited for light industrial and workshop appliactions where the compressed air outlet needs to be situated close to the point of use. Features Simple-to-use electronics A high quality starter with a robust control circuit, including over-temperature protection. Complete packages save time Hydrovane compressors by CompAir are also available as integrated packages, promoting a more cost-effective system. These solutions include Hydrovane’s Hypac systems fully equipped with integrated membrane or refrigerant dryers and receiver and filtration options. Expert CompAir Authorised Distributors can advise you on the best solution for your exact industry and application needs. Our innovative package solutions can then be delivered to you as a factory-built package or supplied as a kit for local assembly.
