Self-priming pumping unit GR1 series

stationaryindustrialtransfer

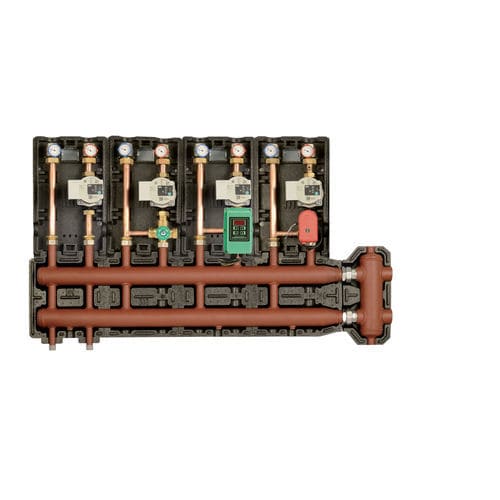

Direct and mixed – 1″ connections Pump units are supplied with right inlet and left outlet; they can be reversed during installation, except for the code GR1M Included insulation COMPARATO’S SYSTEMS optimize the space and features of your thermal power station: modularity, installation flexibility, customization possibilities and an extremely neat and compact design are its strenghts. DIRECT group • DN25* • cod. GR1D The DIRECT pump group can supply the right flow and suitable head to the heat-transfer fluid in hydraulic Systems, when there’s no need to control the outlet température. The group is fitted with a high-efficiency pump, inlet and outlet thermometers, interception valves on System and pump inlet sides, Shell insulation. Inlet and outlet can be easily inverted and a cooling circuit version (upon request) is also available. MIXED group • DN25* • cod. GR1T The FIXED-POINT MIXED pump group can supply the right flow and suitable head to the heat-transfer fluid in hydraulic Systems, when there's the need to control the outlet tempe-rature. Thanks to the the thermostatic mixing valve, you can set the outlet température to the System in an effective and safe way. The group is fitted with a high-efficiency pump, 3-way thermostatic mixing valve, inlet and outlet thermometers, interception valves on System side and shell insulation.
