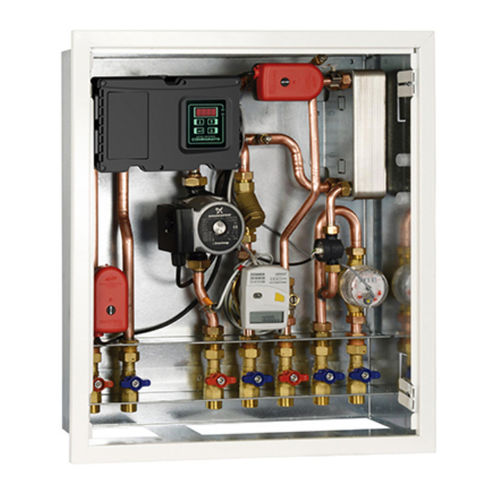

Thermal energy metering system DIATECH L

sanitary

Direct energy metering Centralised heating plant management Plated heat exchanger for DHW production Hot and cold sanitary water lines For traditional heating plant In-line connection from the bottom Product Type - Model Hydraulic interface unit for heating and DHW and DCW production with in-line connection on the inferior side - Diatech L COMPONENTS Strainer Inlet manual interception valves Outlet manual interception valves DHW temperature probe Flowmeter Flow static limiter Heat exchanger Sintesi 2-way modulating motorised valve on sanitary circuit Sintesi 2-way ON/OFF motorised valve on primary circuit Electronics management box Energy meter, local reading / Energy meter, M-Bus reading / Ultrasonic energy meter Sanitary water meter, local reading / Sanitary water meter, M-Bus reading Template box
