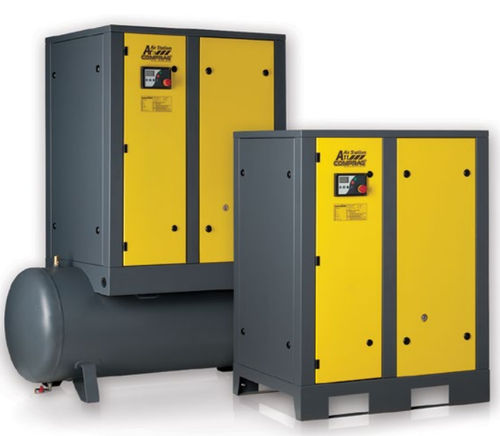

Screw compressor A seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-filled
- Application domain
- industrial
- Other characteristics
- tank-mounted, compact, energy-saving
- Pressure
8 bar, 10 bar, 13 bar
(116.03 psi, 145.04 psi, 188.55 psi)- Flow
Max.: 2.3 m³/min
(81.22 ft³/min)Min.: 0.6 m³/min
(21.19 ft³/min)- Power
7.5 kW, 11 kW, 15 kW
(10.2 hp, 14.96 hp, 20.39 hp)
Description
Comparg A-Series are oil filled screw compressors designed for smooth and economical production of compressed air in industrial plants. They feature a compact, logically laid-out design, high quality materials and workmanship, using key components from leading manufacturers.
Features
Modern, energy-efficient air-end.
Microprocessor controlled for optimal cost-effective compressor operation.
Through intelligent design of all key components, internal pressure losses are kept to a minimum, resulting in noticeable savings in total energy consumption.
Through the use of an effective oil separation system, a residual oil content in compressed air of maximum 3 mg/m3 is attained.
All filters and separators are easy to reach for economical service.
