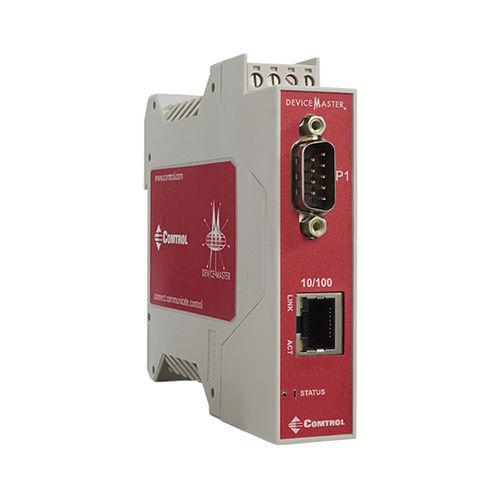

RS-232 device server DeviceMaster MOD-2101

RS422/RS485Ethernet TCP/IPDB9

DeviceMaster MOD-2101Simultaneously connect both serial and Modbus devices to PLCs and/or applications.Part Number: 99602-6 The DeviceMaster Modbus model provides the following communication modes: Modbus/TCP to Serial or Ethernet TCP/IP Modbus/TCP to Modbus/RTU Modbus/TCP to raw serial data Modbus/RTU Device (Auto Locate and Auto Route) Pepperl+Fuchs Comtrol has developed three unique Modbus firmware applications that provide a wide range of Modbus connectivity. Simple connections or complex Modbus networks, you can do it all with a DeviceMaster MOD-2101. The DeviceMaster MOD-2101 is loaded with Modbus Router firmware but you can load either Modbus TCP or Modbus Server, depending on your requirements. DIN-rail mounting and screw terminal connections Wide operating temperature ranges (-40º C to 75º C) Surge protection for serial ports Wide DC input voltage range (5-30VDC) Support for Modbus/TCP Single DB9 serial port DualConnectPlus™ technology Secure SSL & SSH management Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode NEMA TS2 Certified UL Safety Certified
