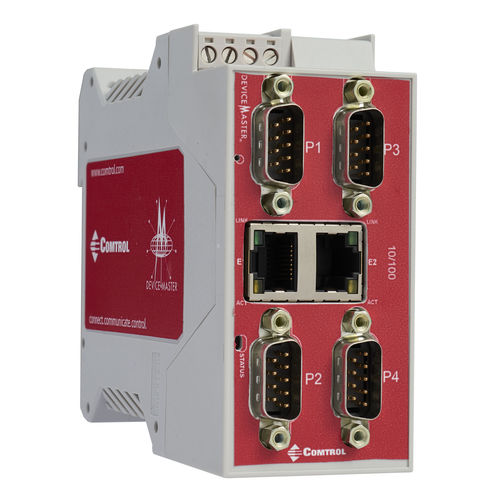

DeviceMaster MOD-2304Simultaneously connect both serial and Modbus devices to PLCs and/or applications. Or DeviceMaster MOD-2304 brings plant floor device visibility by enabling communications between factory floor serial and Modbus devices, and PLC controllers.Part Number: 99612-5
DIN rail mounting and DB9 connections
Wide operating temperature ranges (-40º C to 75º C)
Surge protection for serial ports
Wide DC Input Voltage Power (5 - 30VDC)
Support for Modbus Router, Modbus/TCP, or Modbus Server
Dual Ethernet ports for daisy chaining network connections between multiple units
Four serial ports with DB9M
SSL & SSH management, SSL serial data stream encryption
Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode
NEMA TS2 Certified
UL Safety Certified
The DeviceMaster MOD Modbus provides an RS-232, RS-422 or RS-485 software-selectable serial connection to an Industrial Ethernet network.
Simultaneously connect both serial and Ethernet devices to PLCs and/or applications with DualConnectPlus™ technology. String, RFID, and barcode data filtering eliminates redundant data while extracting the RFID and barcode parameters.
