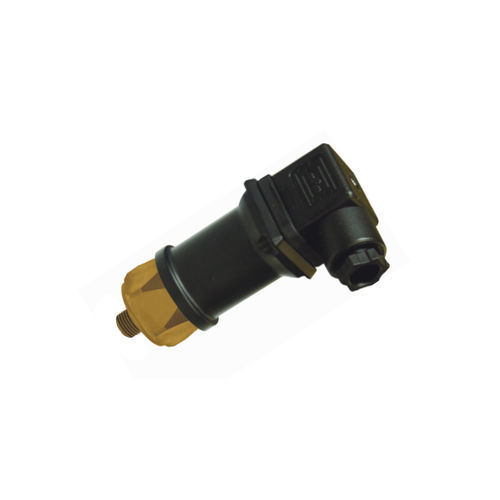

Adjustable piston pressure switch SQ27NONCDIN rail
Add to favorites
Compare this product
Characteristics
- Technology
- adjustable piston
- Contact type
- NC, NO
- Mounting
- DIN rail
- Process connection
- NPT 1/4, G 1/4, G 1/8, NPT 1/8
- Material
- brass, steel
- Protection level
- IP67
- Applications
- for hydraulic applications, for pneumatic applications, for the automotive industry
- Other characteristics
- adjustable, compact, IP67
- Pressure range
Max.: 100 bar
(1,450.38 psi)Min.: 0.2 bar
(2.9 psi)- Switching power: current
4 A
- Process temperature
Max.: 100 °C
(212 °F)Min.: -10 °C
(14 °F)
Description
Gold or Silver Contacts
Leads with Connector
Fittings Fixed or Adjustable
Pressure Range
Robust in Severe Applications
Applications Include
Automotive Industry
Hydraulic & Pneumatic industry
Over Pressure Safety Cut Out
Air Compressor control
Contact Rating: 4A 42Volts DC / 4A 230Volts AC
Maximum Voltage Peak: 1.5 KV
Hex Length: 27mm
Body Material: Zinc Plated Steel, 316SS, Brass
Catalogs
SQ Series SQ27
2 Pages
Pressure Switches
2 Pages
