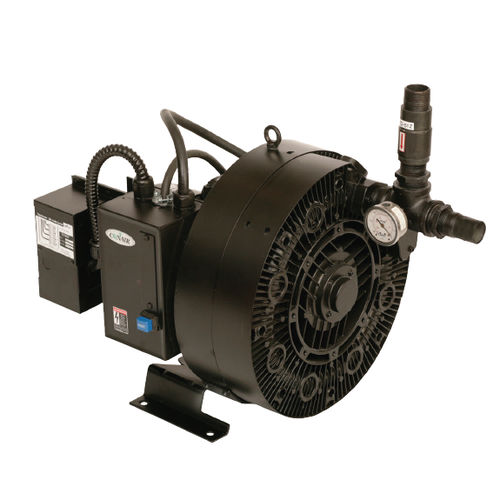

Lubricated vacuum pump RG series
single-stageregenerativefor the plastics industry

lubricated vacuum pump
lubricated vacuum pump
Add to favorites
Compare this product


Characteristics

Lubrication
lubricated
Number of stages
single-stage
Applications
for the plastics industry, regenerative
Other characteristics
compact, low-noise level, direct-drive, pneumatic
Flow rate

Max.: 226 ft³/min
(6.4 m³/min)

Min.: 57 ft³/min
(1.61 m³/min)

Power

Max.: 12.6 kW
(17.13 hp)

Min.: 2.6 kW
(3.54 hp)

Width

Max.: 36 in

Min.: 22 in

Height

Max.: 25 in

Min.: 14 in

Weight

Max.: 214 kg
(471.79 lb)

Min.: 27 kg
(59.52 lb)

Description

For moderate distance conveying applications, nothing beats the simplicity of a regenerative vacuum pump from Conair. Replacing larger, more complex positive displacement pump/motor units, RG Series Pumps utilize a one piece fan/motor unit to produce reliable vacuum power for loading systems up to 450 feet {137 m} and 7000 lbs/hr {3175 kg/hr}. The simple, compact design allows the pump to be installed in nearly any indoor location, it can even be wall-mounted. Because the operating sound level is very low, con Requires no maintenance The pumps are permanently lubricated to reduce downtime. Quiet operation Requires no soundproofing. Reliable components RG Series Pumps include a vacuum relief valve, vacuum gauge, magnetic starter and overload protection. Options IDLE MODE VALVE AND TIMER This option eliminates frequent starting and stopping of the pump motor. FILTER CANISTER The filter canister provides simplified dust collection for virgin material systems.
