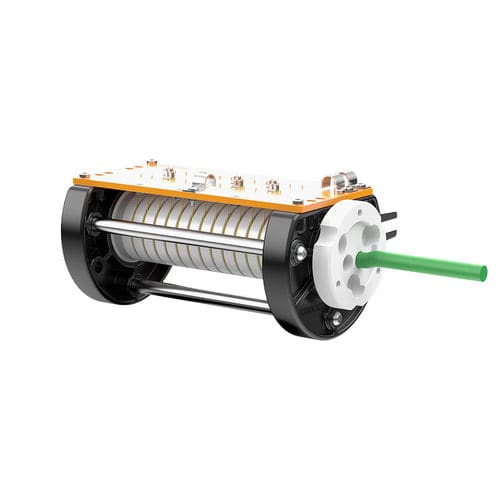

Ethernet slip ring USR30

1 Gbps100 Mbpsthrough-hole

The USR30 series is a compact, built-in slip ring solution for industrial Ethernet applications, offering reliable data transmission in confined spaces. Based on gold-on-gold contact technology, it provides high-performance connectivity without compromising on space or cost. Key features: - Built-in slip ring design (IP00 – no housing) - Supports up to three lines at 100 Mbps or two lines at 1 Gbps - RJ45 connectors on both sides for easy integration - Optional cable tail version up to 1 Gbps, tested at 250 MHz - Up to 100 rpm rotational speed - Optional integration of a 6 mm air joint with fast fitting and one Ethernet line - Can be mounted in a vertical or horizontal position - Compatible with the USR, E-USR, CGR, CUSTOMISED and SPECIAL series
