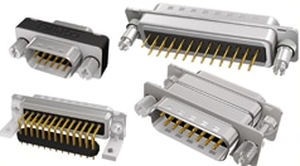

Data connector

D-subcrimpsolder

The I/O connection system has been invaluable to electronic applications for many years. D-SUB Connectors – also known as D-Subminiatur or Sub-D connectors – are used in nearly all application markets, from control and measuring to telecommunications and computer applications. D-SUB connectors take their name from their characteristic D-shaped shell, which protects both sides of the connector from mechanical and electromagnetic interference CONEC D-SUB connectors are available in five standardized housing sizes in the variants D-SUB Standard, D-SUB High Density, D-SUB Filter, D-SUB Combination, D-SUB Filter Combination and D-SUB hoods. The combination of different contact types provides opportunities to save installation space and costs in the interface area. The CONEC Snaplock mounting type is offered as a quick-connect system for common pole numbers. Depending on the mounting type and number of poles, a choice can be made between crimp, wire-wrap, solder pin, solder cup and insulation displacement terminal connection types. Owing to the combination of various contact types there are numerous possibilities of saving installation space and costs in the interface area. CONEC D-SUB connectors are available in five standard housing sizes in the variants Standard, High Density and Combination with or without filters.
