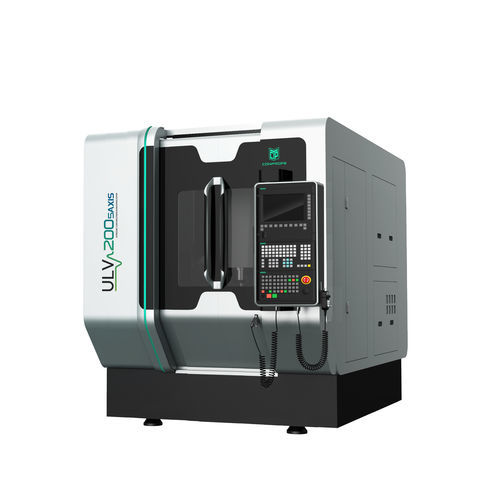

5-axis CNC machining center ULV-200verticalHSK-E32HSK-E40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40, HSK-E32
- Number of tool stations
- 16 tools, 22 tools
- Other characteristics
- high-speed, high-performance, high-productivity, precision
- X travel
250 mm
(10 in)- Y travel
250 mm
(10 in)- Z travel
250 mm
(10 in)- Rotational speed
30,000 rpm, 36,000 rpm
(188,496 rad.min-1, 226,195 rad.min-1)- Power
13 kVA
(17.68 hp)- Table rotation (C axis)
360 °
- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
30 kg
(66 lb)- Tool weight (max)
1 kg
(2.2 lb)- Positioning accuracy
0.007 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
1,900 kg
(4,188.78 lb)- Overall length
1,285 mm
(50.6 in)- Overall width
1,785 mm
(70.3 in)- Overall height
2,030 mm
(79.9 in)
Description
Features:
1. Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force,
thus realizing high-efficiency machining for hard-machining material
2. Supercritical Carbon Dioxide (ScCO2) Through-Spindle Cryogenic Cooling System and MQL
system to realize available for clean machining
3. Full closed loop control enabled by High Precision Linear Encoder
4. X/Y/Z axis repeatability accuracy of 4µm and A/C axis repeatability accuracy of 5’’
5. Standard SIEMENS 840Dsl and optional SIEMENS SINUMERIK ONE system available to
realize 5-axis simultaneous machining with RTCP Function
Application：
Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically
complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics, metal
materials, etc.
