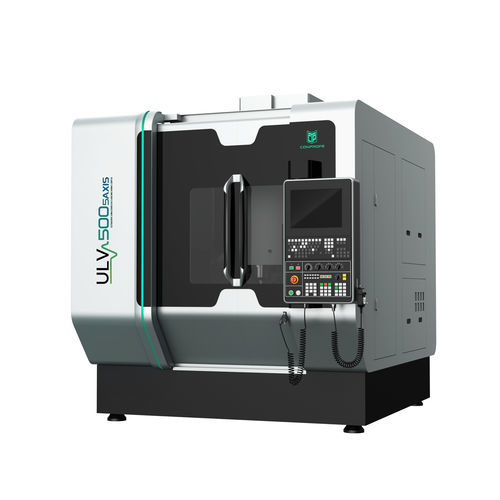

5-axis CNC machining center ULV-500verticalHSK A-6324 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63
- Number of tool stations
- 24 tools
- Applications
- for the automobile industry
- Other characteristics
- high-speed, high-performance, precision, ultrasonic
- X travel
500 mm
(20 in)- Y travel
550 mm
(22 in)- Z travel
500 mm
(20 in)- Rotational speed
14,000 rpm, 20,000 rpm
(87,965 rad.min-1, 125,664 rad.min-1)- Power
60 kVA
(81.58 hp)- Table rotation (C axis)
360 °
- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
300 kg
(661 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.007 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
10,000 kg
(22,046.23 lb)- Overall length
2,240 mm
(88.2 in)- Overall width
3,780 mm
(148.8 in)- Overall height
2,855 mm
(112.4 in)
Description
Features:
1. Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force,
thus realizing high-efficiency machining for hard-machining material
2. Supercritical Carbon Dioxide (ScCO2) Through-Spindle Cryogenic Cooling System and MQL
system to realize available for clean machining
3. Full closed loop control enabled by High Precision Linear Encoder
4. X/Y/Z axis repeatability accuracy of 4µm and A/C axis repeatability accuracy of 5’’
5. Standard SIEMENS 840Dsl and optional SIEMENS SINUMERIK ONE system available to
realize 5-axis simultaneous machining with RTCP Function
Application：
Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically
complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics, metal
materials, etc.
