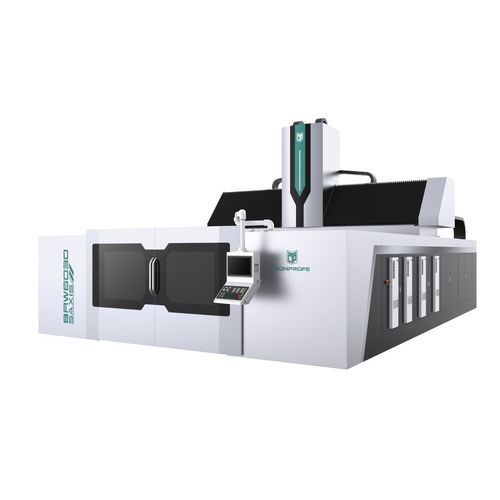

5-axis CNC machining center BRW6030

verticalfor glassfor aluminum

Product Overview

• Gantry frame structure with optimized moving components to maximize rigidity and dynamic performance for high-precision machining
• Thermally symmetrical design validated by finite element analysis (FEA) to minimize thermal deformation over long production cycles
• Cast-iron construction selected for superior vibration damping, stability and reliable dynamic cutting performance
• Structure and stiffness continuously refined via FEA to ensure long-term dimensional stability
• X/Y/Z axes equipped with water-cooling to reduce thermal influence on machine accuracy

Product Highlights

• Optional high-precision A/C milling heads available from FISCHER or KESSLER
• Standard encoder feedback and circulating spindle water-cooling to maintain spindle thermal equilibrium; spindle axial thermal elongation ≤ 0.02 mm after continuous high-speed operation
• All rotating and mechanical components dynamically balanced and tested
• Flexible bellows protection for X-axis bed rails, Y-axis crossbeam rails and Z-axis spindle box rails
• Fully enclosed machining area with stainless-steel inner panels to capture over 90% of large particles
• Fast response: instantaneous start/stop with adjustable acceleration and motion profiles for rapid, precise positioning
• Designed for long service life and low maintenance with reduced wear in transmission components

Application Cases

• Engineered for high-precision, high-efficiency machining of aerospace composite structures
• Typical materials: Nomex and aluminum honeycomb, carbon-fiber composites, carbon preforms, fiberglass, foam, Kevlar, PBO fiber

Technical Specifications
Model: BRW6030-5AXIS
X/Y/Z-Axis Travel: 6,000 / 3,000 / 1,250 mm
Worktable Dimension: 6,000 x 3,000 mm
Spindle Taper: HSK-A63
Spindle Speed: 50 - 24,000 rpm
Motor Power: 37 kW
X/Y/Z-Axis Rapid Speed: 50,000 / 50,000 / 40,000 m/min
X/Y/Z-Axis Feed Speed: 1 - 25,000 m/min
X/Y/Z-Axis Positioning Accuracy: 0.03 / 0.02 / 0.01 mm
X/Y/Z-Axis Repeatability: 0.015 / 0.01 / 0.005 mm
Tool Holding Capacity (Full): 40 (60 Optional)
Net Machine Weight: ≈75,000 kg
Machine Size (L x W x H): 10,000 x 7,000 x 7,300 mm
CNC Controller: SIEMENS One (HEIDENHAIN Optional)
