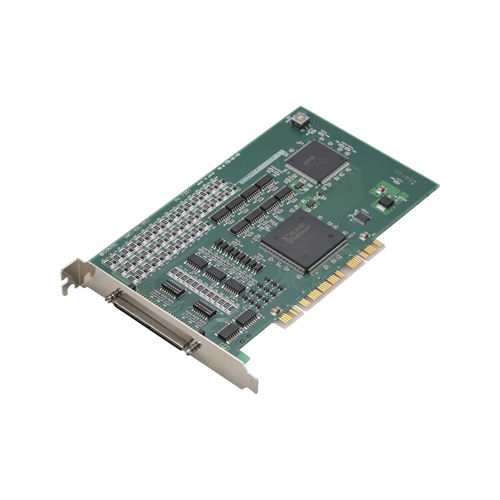

Multi-axis motion control card SMC-4DL-PCI

servomotorlinearsynchronization

This product is a PCI bus board that supports stepping motors and (“pulse string input” types of) servomotors. SMC-4DL-PCI can perform motor control for up to 4 axes. This product has the functions for positioning, origin return, linear interpolation, and for S-curve acceleration and deceleration, capable of multi-axial linear interpolation and speed/position overriding. This product covers a wide range of applications including semiconductor equipment, test instruments, multi-axis robots, and X-Y robots. These various functions make it possible to build complex positioning control systems for variety of uses such as manufacturing devices and test devices. Windows/Linux device driver is supported with this product. Capable of multi-axis independent control and pulse output up to 9.8Mpps SMC-4DL-PCI : Control for up to 4 axes and motor control pulse output up to 9.8Mpps are available. Command pulse for motor control supports common pulse, independent pulse and 90° phase difference pulse. Limit input 3channels/axis, general-purpose input 7channels/axis, and general-purpose output 3channels/axis are equipped. Also, depending on the software setting, 5 general-purpose inputs can be used as alarm inputs, and general-purpose outputs as deviation counter clear outputs. Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning, and origin returning Carrying a motor control IC in the PCL6100 series from Nippon Pulse Motor Co., Ltd., capable of controlling jogging, positioning, origin returning, synchronization control and linear interpolation.
