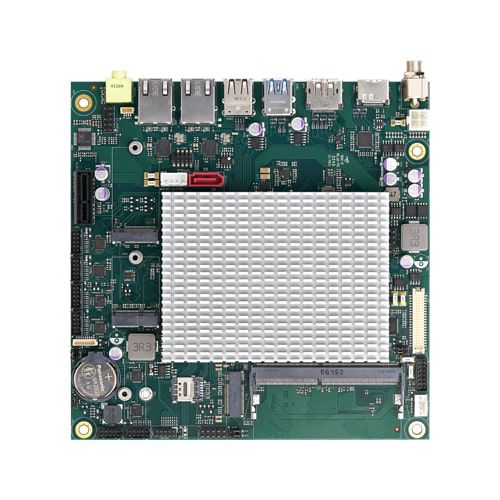

Mini-ITX motherboard GMB-IEHL210

Intel® Celeron® J6413Intel® Elkhart lake SoCIntel®

The new product is an industrial motherboard that utilizes the Mini-ITX form factor. It is designed specifically for thin edge computing applications on the Internet of Things (IoT) space. The system is powered by an Intel® Elkhart Lake platform J6413 Quad Processor, which provides reliable performance for embedded applications. Intel® Elkhart Lake platform Intel® Elkhart Lake platform, Total 4 Cores, 4 Threads, Processor Base Frequency1.80 GHz, Cache1.5 MB L2 Cache, and TDP10 W. Dual 2.5 Gbps LAN ports and M.2 support Two sets of integrated 2.5 Gigabit Ethernet ports and M.2 support for add-on Wi-Fi modules provide faster and more reliable network connectivity. Triple displays output support The new product supports triple displays output with DisplayPort (v1.2), HDMI 1.4b, and LVDS. It is powered by DC-IN 12VDC using a lockable DC-Jack. The system also supports on-board TPM2.0 for hardware-based security. Extend Peripherals Freely Rich Interface Equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, M.2 Key E/ Key B / Key M, LAN, HDMI, ect. For customers with various needs.
