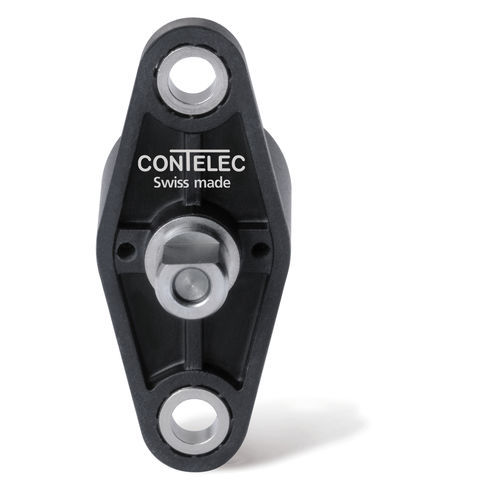

Absolute rotary encoder Vert-X 16magneticsolid-shaftsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Construction
- solid-shaft, single-turn, flange, non-contact
- Output signal
- analog, digital
- Supply voltage
- 5 VDC
- Protection level
- IP65, IP54
- Other characteristics
- compact, high-accuracy, miniature, redundant
- Housing diameter
16 mm
(0.63 in)- Shaft diameter
6 mm
(0.24 in)- Rotational speed
120 rpm
(754 rad.min-1)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 105 °C
(221 °F)
Description
Rotary encoder, magnetic
- Very compact dimensions
- Mounting tabs with metal inlets
- Contactless measuring method
- Long life
- High accuracy of measurement
- Use in very cramped installation conditions
