Steel waste container SCL series

HDPEin-groundside-loading

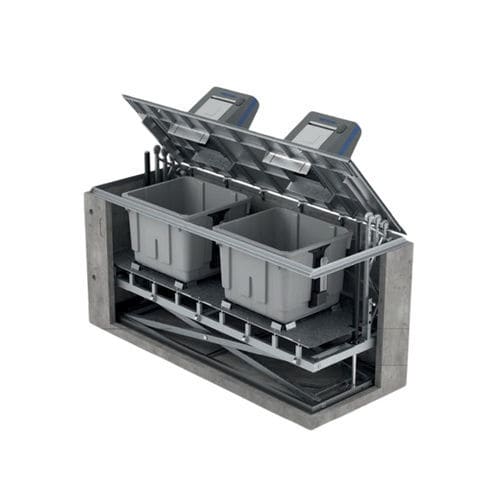

‐ Operated by single-acting cylinders with scissor lift and balancing mechanisms. ‐ Available in single and double units to accommodate side-loading containers of up to 3,500 litres. ‐ Lifting structures and platform made of hot dip galvanised steel in accordance with ISO 1461 standard. ‐ Walk-on platform finished with anti-slip chequered galvanised steel plate or tray suitable for paving. ‐ Designed to operate with a low-pressure hydraulic system, resulting in greater durability. DISPOSAL COLUMNS ‐ Millennium and Europa models manufactured from High-Density Polyethylene. The internal structure is made of galvanised S235JR steel, and the drum is made of AISI 304 stainless steel. ‐ Evolution and Austral models made from galvanised steel with cataphoresis coating and paint finish, or in stainless steel. ‐ Available with inlets for glass, paper, and packaging, or with single/double drum designs ranging from 75 to 120 litres, with foot-pedal operation (depending on model). ‐ Compliant with accessibility standards. WALK-ON PLATFORM ‐ Manufactured from tubular S235-JR steel framework and steel sheet between 3 and 8 mm thick. ‐ Fully hot-dip galvanised in accordance with ISO 1461 standard. ‐ Platform finished in 3/5 mm hot-dip galvanised chequered plate or 45 mm tray suitable for paving. ‐ Adjustable to accommodate ground slopes of up to 8%. LIFTING STRUCTURE ‐ Manufactured from tubular S275-JR steel framework and UPN profiles. ‐ Lift mechanism operated by two single-acting hydraulic cylinders, made with ST-52 liner and Ø 80 mm chrome-plated F-114 pistons. ‐ Equipped with parachute safety valves and lock bolts for maintenance tasks.
