Suited for heating and/or cooling operation
Uses IAPWS-IF97 to determine water properties
Selection of common industry fluids using internal tables
Facility for user defined Enthalpy and Density table
Flow meter can be located in feed or return line
Allows for Non-Linear Correction
Selection of second language and user tags
RTC logging with over 1000 entries
Infra-red communications port on front panel
Pulse width and scaling of pulse output
4-20mA retransmission
Selectable protocols on serial ports including Modbus RTU and printer output
Front panel adjustment of 8-24V DC output voltage
Backlit display
LCD Backup

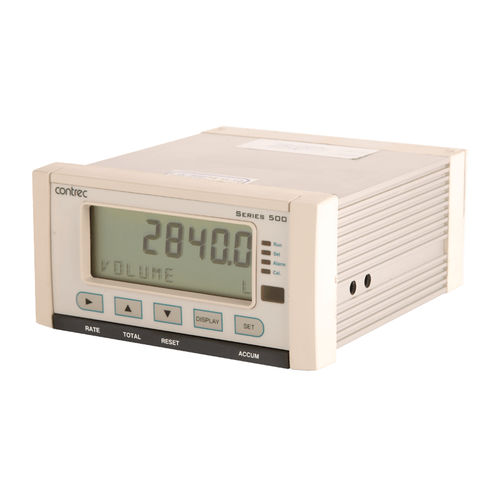

The 515 HC01 application measures the volume, mass and energy content of fluid in a heating or cooling system by using frequency volume flow input in conjunction with analog feed and return temperature inputs.
A selection of fluid types and modes makes it suitable for many heating/cooling applications. The instrument is compatible with a wide range of flowmeter frequency outputs, including millivolt signals, reed switches, Namur proximity switches and pulse trains via its smart front-panel programming.
The instrument calculates the mass flow and energy according to the IAPWS Industrial Formulation (1997) when the fluid type is water, while internal enthalpy and density tables are used for the selection of other industry fluids.
CALCULATIONS
The instrument can calculate the mass and energy for the following common industry fluids:
Water
Glycol (35% Solution)
Brine (27% CaC2)
TYFOXIT F20
TYFOXIT F40
Essotherm 500/Thermaloil
THERMINOL 55
User Custom Fluid
Formulas
