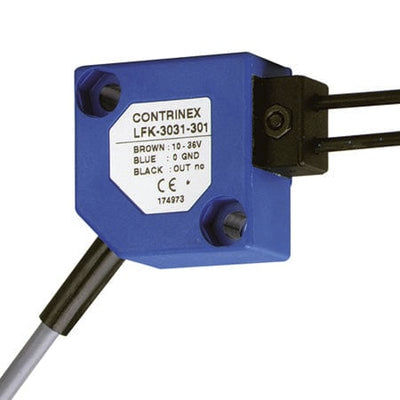

Photoelectric sensor with background suppression LFK-3031-301cubicLEDwith integrated amplifier
Add to favorites
Compare this product
Characteristics
- Sensing mode
- with background suppression
- Housing
- cubic
- Type of beam
- LED
- Other characteristics
- fiber optic, with integrated amplifier
- Maximum range
60 mm
(2.4 in)
Description
Operating range - 60 mm
Switching frequency max. - 1000 Hz
Supply voltage - 10...36
Polarity - NPN
Output - Light-on
Sensitivity adjustment - 12-turn pot.
Connection - PVC, 2 m, 3 wire
Housing size [mm] - 30 x 30
Enclosure rating - IP 67
Housing material - PBTP (Crastin)
Temperature range - -25...+55°C
Light source - LED, red 660 nm
Interface - Standard output
Operating principle - Fiber amplifier
Sensing range max. - 0
