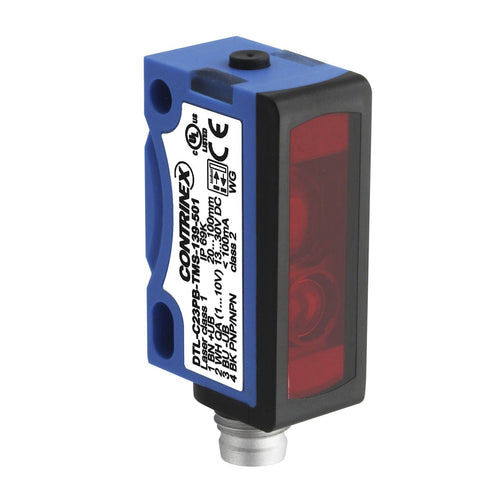

Diffuse photoelectric sensor DTL-C23PB-TMS-139-501rectangularlasercompact
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse
- Housing
- rectangular
- Type of beam
- laser
- Other characteristics
- compact
- Maximum range
Min.: 20 mm
(0.8 in)Max.: 100 mm
(3.9 in)
Description
Operating range - 20...100 mm
Switching frequency max. - 1000 Hz
Sensing Linearity - ± 0.25 mm
Supply voltage - 13...30
Repeatability - < 0.25 mm
Polarity - PNP/NPN auto-detect
Output - Light-on/Dark-on + 1...10 V
Sensitivity adjustment - Teach button
Connection - M8 4-pin
Housing size [mm] - 20 x 34 (C23)
Enclosure rating - IP 67 / IP 69K
Housing material - ABS
Resolution - 0.12 mm
Temperature range - -20...+60°C
Light source - Laser class 1, red 650 nm
Operating principle - Distance diffuse
