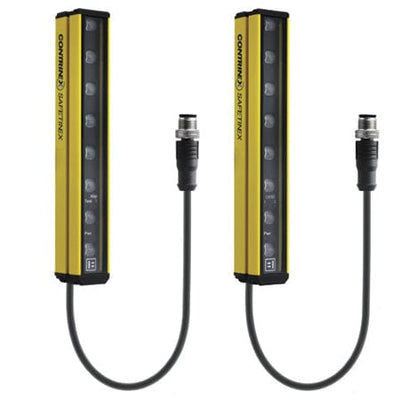

Safety light curtain YBBS-30K2-0170-P012
multibeamthrough-beamIP65

Safety light curtain - YBBS-30K2-0170-P012 - CONTRINEX - multibeam / through-beam / IP65
Safety light curtain - YBBS-30K2-0170-P012 - CONTRINEX - multibeam / through-beam / IP65
Safety light curtain - YBBS-30K2-0170-P012 - CONTRINEX - multibeam / through-beam / IP65 - image - 2
Add to favorites
Compare this product

Characteristics

Function
safety
Type of beam
multibeam
Configuration
through-beam
Protection level
IP65
Other characteristics
infrared
Operating range

Min.: 0.3 m
(0'11" )

Max.: 8 m
(26'02" )

Description

Sender wavelength - IR 850 nm Protective height - 170 mm Supply voltage - 24 Polarity - PNP Safety Level - Cat. 2, PL c, Type 2 Connection - PUR, 0.3 m, 5 / 5 wire + M12 5-pin Housing size [mm] - 26 x 26 (slim) Safety Type - Kit Response time - 6 ms Resolution - 30 mm (hand) Product Range - Light curtain basic slim Beam gap - 20 mm
