Fan controller module SuperBrain FC

fan controller module
fan controller module
Add to favorites
Compare this product


Characteristics

Application
fan

Description

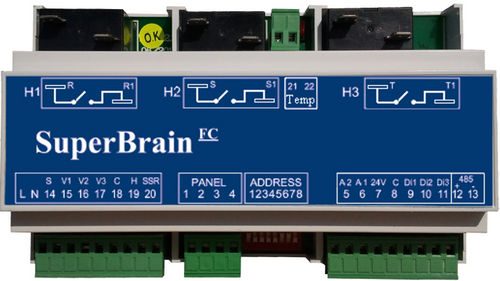

This is the SuperBrain FC controller, which is a micro controller. It has been especially developed for air conditioning units, fan & coil as well as large capacity fan and coil units. The SuperBrain FC controller is the one of the best solutions for air conditioning as well as fan & coil units that includes heating as well as cooling systems. Features : It has 230 VAC power supply and has 4 speed fan velocities. It has time operation control as well as heating and cooling solenoid control.It has no flow/temperature protector for input. It features a time proportional control using Solid State Relay ( SSR ) and also an input for fire or smoke detection. It has a RS485 communication and a modulation control for heating as well as cooling valves. It can operate up to 3 heating elements with 20 A relays each. Has an on/off OR start/stop fan operation as well as summer/winter OR automatic heating/cooling operation. Input/output Points : It has a Valve actuator output of 0-10 VDC, 8 mA. The Solenoid can operate at 230 VAC, max 150 mA. 24 VAC, max 150mA. It has 3x5 A Fan relays and also has an option of 3x10 A. It has heating element relays of 3x20 A. The Fire/smoke sensor input and flow/temp protector input is Dry contact. It has a SSR output 24 VAC and max 150 mA.
