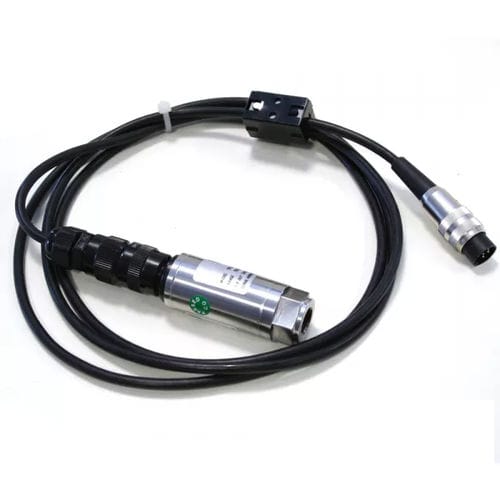

Pressure transducer with diaphragm seal 82-P0 Seriesrelativemembranevoltage output
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- voltage output
- Mounting
- threaded, flush diaphragm
- Process connection
- BSP 1/4
- Material
- stainless steel, PVC
- Other characteristics
- with diaphragm seal
- Pressure range
Max.: 700 bar
(10,152.64 psi)Min.: 0 bar
(0 psi)- Precision
0.5 %
- Process temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Featuring fully sealed stainless steel pressure chambers and diaphragms
Pressure transducers provide a very accurate electrical signal strictly proportional to the pressure of the hydraulic circuit of the testing machine or apparatus. Featuring fully sealed stainless steel pressure chambers and diaphragms. The transducer uses a full Wheatstone bridge circuit. The 50-Q50/PT model, mainly used for compression testing frames, is supplied complete with U-shaped metal protection. See picture.
• Resolution: infinite
• Sensitivity: 2mV/V applied (nominal)
• Full scale output: 20 mV nominal
• Cable: 4 core PVC insulated, 1 m length
• Connection thread: ¼ BSP
• Weight approx.: 150 g
