The features of the reversed monorail 1210 series are that of a 1200 overhead monorail chain conveyor.
The inverted monorail forms a closed loop. The chain runs in a steel section. Carried parts are hooked to the chain through a C-shaped hook.
Rail section: 40mm×40mm×thickness 3mm.
The conveyor chain is fitted with horizontal and vertical wheels with bearings.
Chain pitch: 180mm.
The chain includes mechanical parts and forged parts. It has an anchoring point at each pitch.
Maximum operating temperature: 250°c.
The inverted conveyor can also be used as a transfers conveyor
Description

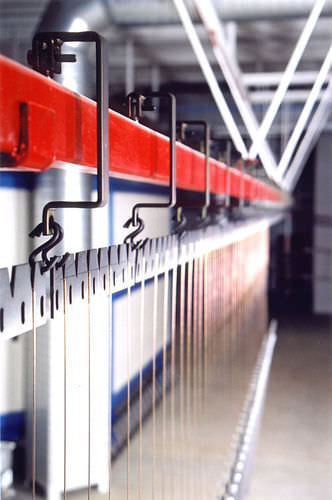

The reversed overhead monorail chain conveyor 1210 series is a motorized handling system by track in reversed position and chain for ligth loads. Carried parts are hung to the chain through a C shaped hook (C-hook). Its advance may be continuous with variation speed or step by step. The overhead conveyor chain is characterized by its easy adaptation to sinuous routings. Works of loading and unloading of transported parts by the aerial conveyor may be realized automatically, for example by industrial robots. Supports of transported parts may be designed by CONVOYNORT's team.
Specifications
Rail section height 40mm x width 40mm x thickness 3mm The track of the chain conveyor can be made in stainless steel.
The chain conveyor is fitted with horizontal and vertical bearings, mechanical parts and forged parts. The curves or bends of overhead conveyor are arched sections. They require no idler wheel, no carrier or rotation guide, which eases the maintenance. Maximum temperature 250°C.
Maximum weight per pitch : 25 KG - 50 KG
