Material feeding system

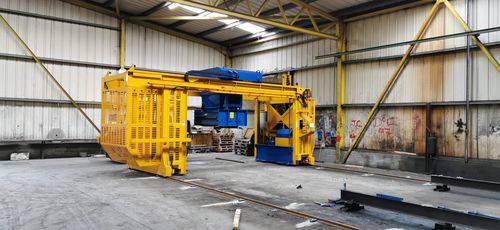

The XY Feeder system is used for the production of wet cast products up to 3.2m in width, 1m deep and up to 8m in length. The XY Feeder lifts a mould onto the vibration system and fills it. It then places the filled mould into a collection position in front of the stack and lifts the next mould onto the vibration system to start the process again.The concrete in the holding hopper can be dispensed using various techniques suitable to the material in the hopper. XY Feeder Production Run The concrete holding hopper is filled with concrete. The operator moves the XY Feeder over the mould that is located on the vibration system. The operator positions the hopper over the top of the mould. The hopper door is then opened to the correct level and the vibrator begins the flow of concrete. The hopper is moved along the mould filling it with concrete, when a suitable level has been filled the operator starts the vibration system from the controls located on the pendant arm. The concrete is levelled with the vibration and any low spots in the mould are filled by the operator. Once the mould has been suitably filled, the hopper is parked in the park area of the main frame. The XY Feeder then lifts the mould and brings it to the set down position in front of the first stack. The pallet handler will collect the filled mould from this position. An empty mould is lifted from the correct position and it will be taken to the vibration system to be filled and vibrated.
