Communication gateway ServiceBox CSB 4.0

securityindustrialtelemetry

Overview
The ServiceBox CSB 4.0 is an industrial IIoT gateway designed to connect Coperion extruders, feeders, material-handling equipment and complete compounding lines to the C-BEYOND 4.0 platform. It supports retrofit on existing machines and enables secure remote monitoring, diagnostics and maintenance.

Platform & value-adding services
The ServiceBox CSB 4.0 provides secure access to the C-BEYOND 4.0 platform and its optimisation services, including:

• Downtime Tracking
• Maintenance Manager
• Sustain App
• OEE (Overall Equipment Effectiveness) monitoring

Remote service capabilities
The ServiceBox CSB 4.0 enables controlled remote support and diagnostics for production equipment. Typical remote actions include:

• Assistance with initial system setup
• Remote diagnostics and fault analysis
• Guidance on system optimisation and parameter tuning

Error messages can be forwarded automatically to Coperion for rapid analysis. Operators can authorise remote access per system to reduce routine on-site interventions, e.g. software updates.

Hardware concept
The CSB 4.0 solution consists of two hardware components in the production environment:

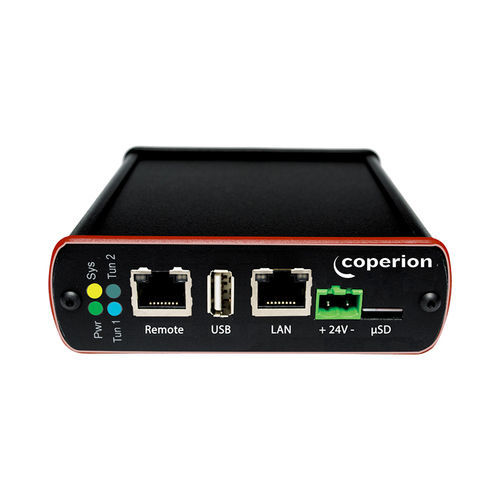

• CSB 4.0 Red Box: device installed at each machine (new machines may ship with Red Box preinstalled; older machines can be retrofitted).
• CSB 4.0 Green Box: central gateway aggregating Red Box connections and serving as the gateway to the C-BEYOND platform.

Previous CSB versions can be replaced with CSB 4.0 units and integrated into the C-BEYOND productivity network.

Security and operation
The CSB 4.0 architecture is designed for secure operation with multiple defence layers. Key security features include:

• Outbound-only connections: Red Boxes initiate connections only to prelisted C-BEYOND destinations; inbound connections are not accepted.
• Encryption: all communication between the Green Box and its destinations is encrypted.
• C-BEYOND Private Cloud: Red and Green Boxes maintain contact with a private cloud and receive automatic security updates.
• Embedded Linux device: CSB 4.0 runs on a hardened Linux kernel following established security practices.
• Certification: the setup is audited annually for ISO 27001:2013 compliance.

Intended use and benefits
The ServiceBox CSB 4.0 is intended to monitor compounding production lines and detect malfunctions in near real time. Benefits include improved uptime, streamlined remote support, consistent product quality and a foundation for future production optimisation and energy-efficiency tools.

Technical specifications

• Model name: ServiceBox CSB 4.0
• Manufacturer / Brand: Coperion
• Application: remote maintenance, monitoring and gateway for C-BEYOND 4.0 services (extruders, feeders, material handling, compounding lines)
• Hardware elements: CSB 4.0 Red Box (per machine), CSB 4.0 Green Box (central gateway)
• Retrofit capability: designed for retrofit on existing Coperion machines; new machines optionally delivered with Red Box preinstalled
• Network topology: isolated outbound-only connections from Red Boxes via the Green Box to listed C-BEYOND destinations
• Security: encrypted communication channels; automatic security updates via private cloud
• Platform integration: gateway to C-BEYOND 4.0 services including Downtime Tracking, Maintenance Manager, Sustain App and OEE monitoring
• Software / OS: embedded hardened Linux kernel
• Certification: annual ISO 27001:2013 compliance review of the setup
• Upgrade path: previous CSB versions can be replaced and integrated into the C-BEYOND network
