Open paint booth CORAL

for partsfilteractivated carbon filter

Overview

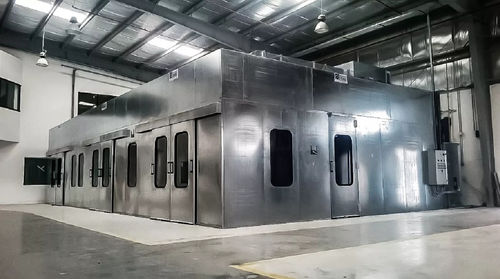

CORAL pressurized booths are modular industrial enclosures engineered to provide a controlled painting, drying and air‑treatment environment protected from external contamination. They integrate with TECNODRY / EURODRY dry booths or ZINCOVELO water‑curtain booths and can include pressurization systems, CTA air handling units, hot air generators and optional KARB activated‑carbon post‑filtration.

Highlights

• Pressurized booths for painting, drying and dust‑free production areas
• Modular sandwich‑panel construction, galvanised or painted on request
• Compatible with TECNODRY/EURODRY dry booths and ZINCOVELO water‑spray booths
• Air‑replenishment filter ceiling for uniform distribution of treated air
• CTA air handling unit or integrated hot air generator for conditioned supply air
• Automatic electronic pressure regulation with pressure sensors and master/slave inverter coordination
• Filtered outside air supplied at constant temperature to maintain positive pressure
• Reduced energy consumption via automatic airflow control
• Touchscreen control panel with parameter and filter‑status display
• Interior IP65 lighting (2×36 W) and options for sliding/folding/hinged doors
• Optional KARB activated‑carbon post‑filtration for organic solvents and paint fumes
• Customisable layouts and sizes to fit production flows

Technical description
The enclosure is built from modular sandwich panels with an inner or outer 1.5 mm press‑formed metal skin and an 80 kg/m³ rock‑wool insulation core. Cabin footprints are configurable (examples: 3×4, 3×6, 3×8, 4×4, 4×6, 4×8, 5×6, 5×8, 5×10, 5×12, 6×6, 6×8, 6×10, 6×12 m) with a clear height under the filter canopy of 3 m. Configurable items include glazed/solid panel combinations, double doors 2 × 2.1 m H or single doors 1 × 2.1 m H, IP65 lighting every 2 m along long sides, a filter plenum, and electrical/air connections to the AHU or generator.

CTA units and KARB post‑filtration
CTA units supply filtered air for pressurization with or without heating; flow range 6,000–26,000 m³/h (models CTA1–CTA5), fan power 3–7.5 kW, sound levels 69–74 dB(A). The KARB activated‑carbon module treats gaseous painting emissions: flows 9,500–29,000 m³/h, activated carbon 330–550 kg, bed thickness 80 mm, max face velocity 0.5 m/s, contact time ~0.16 s; includes regenerable corrugated panels and a double‑inlet fan.

Operation
Filtered outside air is treated by the CTA or hot air generator and injected through the filter plenum into the booth at a constant temperature, creating positive pressure that limits ingress of dust and contaminants. Overspray‑laden air is drawn from the paint booth front into the filtration train; a centrifugal fan discharges filtered air outside. Pressure sensors provide 4–20 mA or 0–10 V signals to a Master inverter coordinating a Slave inverter to regulate supply and exhaust fans. The touchscreen allows configuration, monitoring of parameters and progressive filter clogging indicators.

Technical specifications

• Structure: modular sandwich panels, 1.5 mm press‑formed sheet + rock wool 80 kg/m³
• Available cabin sizes: examples from 3×4 to 6×12 m; clear height under filter canopy: 3 m
• Doors: double 2 × 2.1 m H or single 1 × 2.1 m H (configurable)
• Lighting: 2×36 W IP65, installed every 2 m along long sides
• CTA range: 6,000–26,000 m³/h (CTA1–CTA5); fan power 3–7.5 kW; sound 69–74 dB(A)
• KARB unit: 9,500–29,000 m³/h; activated carbon 330–550 kg; bed 80 mm; max velocity 0.5 m/s; contact time 0.16 s
• Oven‑type booths: temperature regulation up to 40°C
• Control: touchscreen panel; pressure control via sensors and Master/Slave inverters
• Options: sliding/folding/hinged doors, inspection hatches, filter plenum, post‑filtration KARB, oven cabinets, filter cabinets
