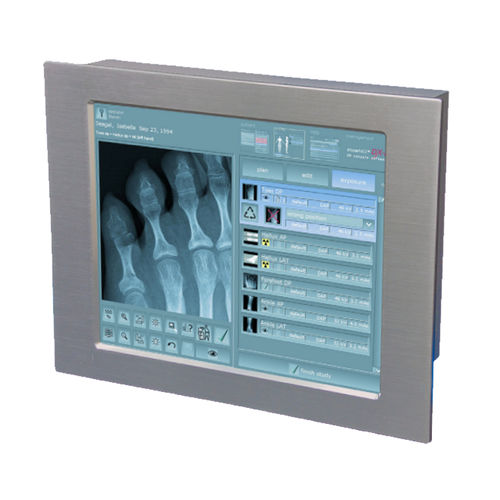

LCD panel PC VISIO PPC-15R
touch screen1024 x 768Intel® Core i7

LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
LCD, touch screen
Resolution
1024 x 768
Processor
Intel® Core i7
Other characteristics
HMI, desktop, outdoor, IP65
Applications
industrial

Description

The Visio PPC-15R™ is a powerful 15 inch touch screen IP65 Panel PC that features a wide range of connectivity and IO options, including dual gigabit ethernet ports, multiple serial port options, and expanded desktop / dual monitor support via an external DVI or VGA port. The front of the panel PC is IP65 outdoor rated, ideal for kiosks, HMI terminals or machine control systems where frequent wash downs may be necessary. The Visio PPC-15R even offers two card slot expansions bays, along with room for two internal 2.5″ hard drives that will take advantage of the built-in RAID 1 or RAID 0 functionality. The wide choice of CPU options and the built-in heavy duty touch screen display capabilities, make this panel PC an ideal computer interface terminal for high traffic use or potentially harsh environments. Weather ResistantIP65 rated touch screenForm Factor15.78″ x 11.96″ (400.9mm x 303.7mm)Panel Cut Size14.17″ x 11.33″ x 3.46″ (360.1mm x 288mm x 88mm)LCD Screen15″ TFT LCD with LED backlightLCD Active Area11.97″ x 8.97″ (304mm x 228mm)LCD Specs1024×768 Color LCD, 9.6W Single channel 8-bit LVDS 16.7M Colors

Catalogs

No catalogs are available for this product.

See all of Corvalent‘s catalogs
