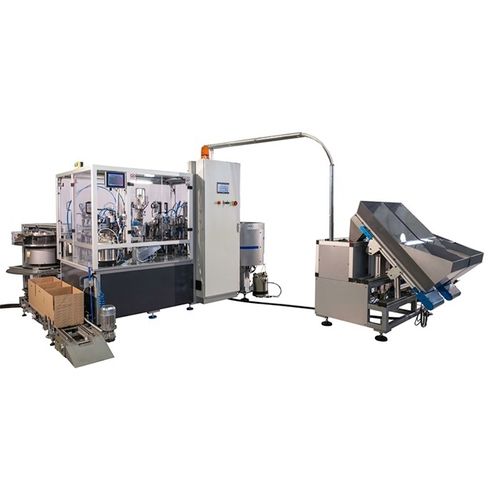

Mounting plate assembly line

Special machine to mount mountingplate and pre-assembled hinge on mountingplate Technical data Speed (pieces/hour) - 3.000 Components to be assembled - 7 Product Versions - 2 Ready to Run Production change time - 30' Start-up time - 6 hours Ramp-up time - 3 hours Characteristics Main features Mono-bloc and rigid basement made of steel to ensure easy machine transport without dismantling the units (quick start-up). Front machine accessibility for the operator, as the feeders are placed in the back and side part of the machine. Extremely flexible machine for quick production change for all the models of hinges to be assembled. Production change time is max 20 min. Specific features Technology: Tapping M4. Orbital riveting of the excenter. Bending of the tab on the mountingplate. Screw-driving of screws spax and M4. Lubrication of the spring on the hinge. Controls: Indirect control of high/low torque of the excenter. Device to control the tab and the spax screws height on mountingplate. Device to control the screws presence on the cup, the screws height and the damper presence with camera. Feeding systems (Moxmec): Bowl and linear feeders with MOXMEC technology for better performances and energy saving. The controller cards of the feeders are inside the switch board and the vibration parameters are memorized and protected by password. Applications: Openable rail cover of the linear feeders.
