protection conduit / corrugated / spiral / for electrical cables

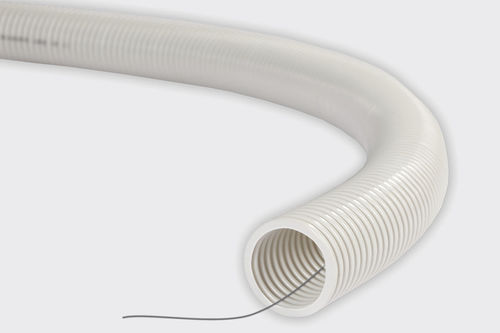

COMBO SPIRAL LIGHT TYPE 320N

{{requestButtons}}

Characteristics

  • Type:

    protection

  • Structure:

    corrugated, spiral

  • Applications:

    for electrical cables

  • Material:

    PVC

  • Protection level:

    self-extinguishing, flame-retardant, impact-resistant

  • Other characteristics:

    flexible

  • Temperature:

    Max.: 60 °C (140 °F)

    Min.: -5 °C (23 °F)

  • Diameter:

    16 mm, 20 mm, 25 mm, 32 mm

Description

GENERAL DESCRIPTION
• Corrugated (spiral), pliable
• Made of polyvinyl chloride – (U-PVC)
• Self extinguishing; flame retardant.

APPLICATIONS
• Indoor residential and industrial installations
• Cable routing through masonry – Flush installations
• Fits with: CΟΜΒΟ Rigid, DOMO Rigid, FORTE Rigid, Junction - Switch – Plasterboard Boxes, Conduits Connection

Available with special galvanized wire internally for quick and easy installation of cables upon order with an extra charge.

APPLICATION STANDARDS: ΕΝ 61386-1/2004, EN 61386-22/2004

PROPERTIES
Resistance to compression - (compression force) at 22 ±2 °C > 320 Ν / 5cm
Resistance to Impact - (Weight mass / Fall Height) at -15 °C m:1kg / h:100mm
Minimum temperature limit - 5° C
Maximum temperature limit +60° C
Dielectric strength 2 kv / 15 min
Insulation resistance > 100 ΜΩ
