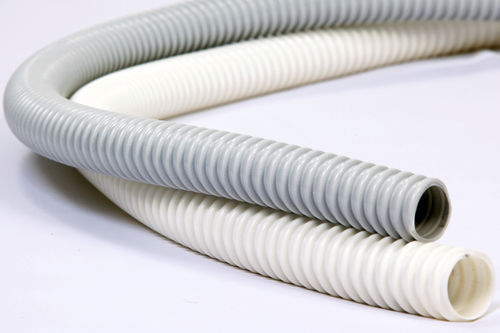

Flexible air duct COURFLEX
PVCspiralflame-retardant

flexible air duct
flexible air duct
Add to favorites
Compare this product


Characteristics

Structure
flexible
Material
PVC
Other characteristics
spiral, flame-retardant
Diameter

Min.: 12 mm (0 in)

Max.: 62 mm (2 in)

Description

GENERAL DESCRIPTION • Flexible spiral • Made of polyvinyl chloride – (P-PVC), reinforced with a spiral made of polyvinyl chloride – (U-PVC) • Suitable for light mechanical loads • Self extinguishing; flame retardant APPLICATIONS • Residential and industrial installations • Infloor, wall mounted installations – Equipment manufacturing • Air Conditioning drainage • Connection with gland - Racor Courflex ® • Fits with: Gland - Racor Courflex ®, Watertight Boxes, Watertight External Elements IP 54 APPLICATION STANDARDS: ΕΝ 61386-1/2004, EN 61386- 23/2004 PROPERTIES Resistance to compression - (compression force) at 22 ±2 °C > 320 Ν / 5cm Resistance to Impact - (Weight mass / Fall Height) at -15 °C m:2kg / h:100mm Minimum temperature limit - 20° C Maximum temperature limit +60° C Dielectric strength 2 kv / 15 min Insulation resistance > 100 ΜΩ

Catalogs
