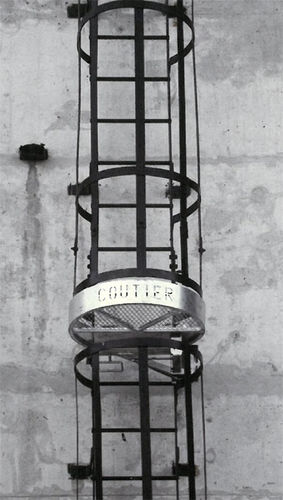

Midway ladder landing C2I

swivelself-lockingfor caged ladders

Swivelling rest-platform for fixed ladders with cage Replaces the staggered ladder flights Self-closing and self-locking by spring-loaded hinges Option: soft closing device with integrated hydraulic speed controller GROUPS OF USERS Industry Engineeering offices Architects, control offices Commercial and industrial buildings Silos, water tanks ... Travelling cranes, gantries Chimneys PRODUCT DESIGNED FOR One way access (climbing and descending with the same ladder) Multiple access (ladders which are connected together, emergency exits) REFERENCES C2I110A : rotation on the right hand side, electrogalvanized steel (soft closing hydraulic controller optional) C2I120A : rotation on the left handside, electrogalvanized steel (soft closing hydraulic controller optional) ASSEMBLY By bolting (supplied) on a steel ladder with interior width between the uprights from 400 mm to 500 mm By fixing kit on an aluminum ladder with interior width between the uprights from 400 mm to 500 mm (with crossing rungs) Estimated assembly time : 2 hours for 2 persons Warranty : 12 months ADDITIONAL INFORMATION Equiment in compliance with following standards : - NF E 85-016 : December 2022 for fixed ladders with total height > 8 meters - EN ISO 14122-4 : March 2017 for fixed ladders with total height > 10 meters Available on stock -Dispatching within 48/72 hours Warranty : 12 months
