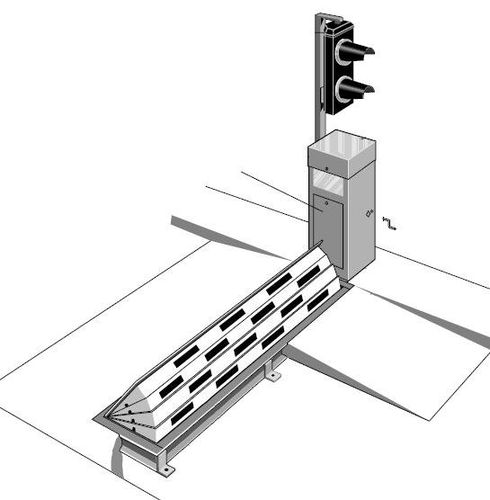

Manual retractable bollard RB-10

road blocker

RB-10 Mechanical Road Blocker Light model rising blocker to be installed directly onto the road surface, without pit or special infrastructure. Specially designed to control access of existing high security parking areas. DESCRIPTION Folded and welded steel housing, 2mm thick. Upper hood with security lock Lateral door for access to internal mechanism with security lock Electromechanical assembly comprising: 120V motor Life-lubricated speed reduction gearbox with worm screw Gearbox driven by pulleys and V-belt Balance achieved by built-in traction springs Obstacle driven by sprocket-wheels and roller chain Limit switches activated by adjustable cams Adjustable safety friction clutch regulated by Ferodo disks Obstacle made of heavy-gauge goffered steel sheet welded on a strong steel profile frame Step skirt made up of 1.5mm-thick telescopic steel sheets, white enameled with red reflecting stripes Driving shaft on pillow blocks with crankshaft/rod device ensuring smooth operation and mechanical locking of step when in upper position Control logic type D1 for control by3-push button box(open - close -stop), Frame to be fixed on the road surface by means of rawl bolts. Difference of level must be compensated by two concrete slopes (to be provided by customer). Red/green traffic light mounted on cabinet. Emergency crank for manual operation in case of power failure.
